HARDWARE FEATURES

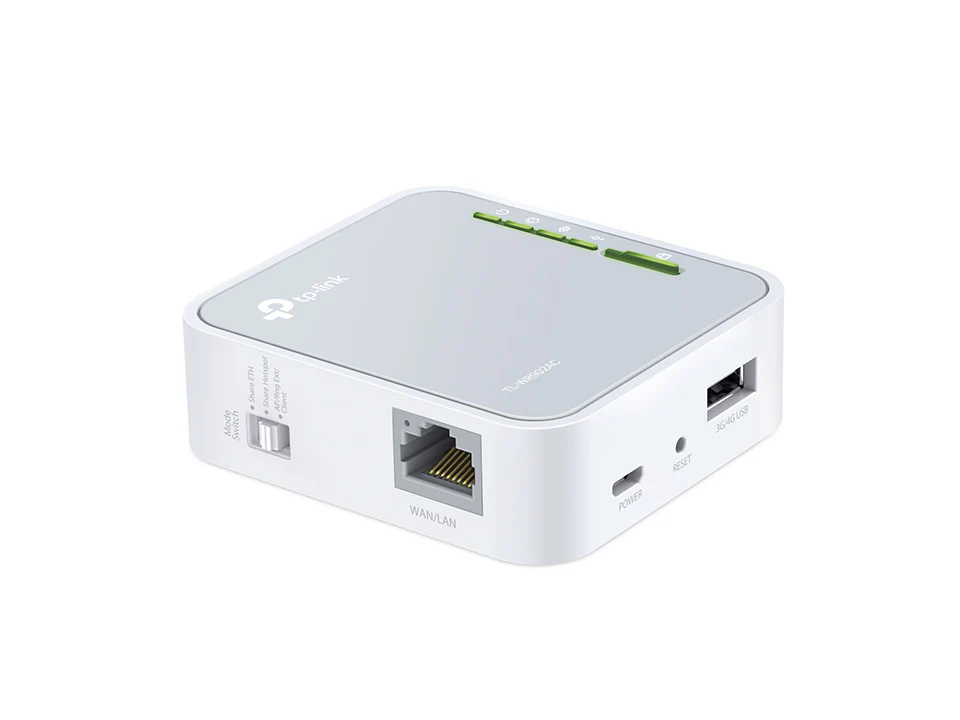

• Interface: 1 10/100Mbps WAN/LAN Port, 1 Reset Button, 1 USB 2.0 Port, 1 Mode Switch, 1 WPS Button
• External Power Supply: 5V/2A
• Dimensions ( W x D x H ): 2.91*2.64*0.87 in. (74*67*22mm)
• Antenna Type: On-Board

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
• Frequency: 2.4GHz and 5GHz
• Signal Rate: 5GHz: Up to 433Mbps(Only with 11AC Wireless Adapter); Up to 150Mbps with 11N Wireless Adapter, 2.4GHz: Up to 300Mbps
• Reception Sensitivity: 11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9:, -61.5dBm, 2.4GHz:, 11g 54M: -76dBm11n; HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm
• Transmit Power: CE: <20dBm(2.4GHz), <23dBm(5GHz)
• Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
• Wireless Security: 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption

SOFTWARE FEATURES

• Quality of Service: WMM, Bandwidth Control
• Management: Access Control, Local Management, Remote Management
• WAN Connection Type: Dynamic IP/Static IP/PPPoE/, PPTP(Dual Access)/L2TP(Dual Access)
• DHCP: Server, Client, DHCP Client List,, Address Reservation
• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: DynDns, Comexe, NO-IP
• VPN Pass-Through: PPTP, L2TP, IPSec
• Access Control: Parental Control, Local Management Control, Host List,, Access Schedule, Rule Management
• Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
• Protocols: Supports IPv4
• Guest Network: 2.4GHz guest network × 1, 5GHz guest network × 1
